The Extra Deepwell hand pump is used to lift water from depths greater than 50 metres. It suits static water levels between 50 and 90 metres, with the cylinder placed up to 85 metres deep. SKI has made hand pumps since 1961 and manufactures Extra Deepwell hand pumps in Patna, India, under an ISO 9001:2015 quality system.
What is an Extra Deepwell hand pump?
An Extra Deepwell hand pump is built for places where the water is deeper than a standard hand pump can reach. It is based on the India Mark 2, with a modified head, a thicker handle and a different cylinder assembly, so it can draw water from greater depths.
Extra Deepwell hand pump specifications
| Item | Detail |
|---|---|
| Static water level | 50 to 90 metres |
| Cylinder placement | Up to 85 metres |
| Minimum borewell inner diameter | 100 mm |
| Handle | 40 mm square section (32 mm on the Mark 2 and Mark 3) |
| Standard cylinder | Cast iron with gun-metal components |
| Optional cylinder | SS 304 cylinder assembly |
How it differs from the India Mark 2
Most components are the same as on the India Mark 2. The head assembly is slightly different, and the handle is thicker: it is made of 40 mm square instead of the 32 mm square used on the Mark 2 and Mark 3 pumps. The cylinder assembly is different too, and combines India Mark 2 and India Mark 3 components.
How the Extra Deepwell pump works

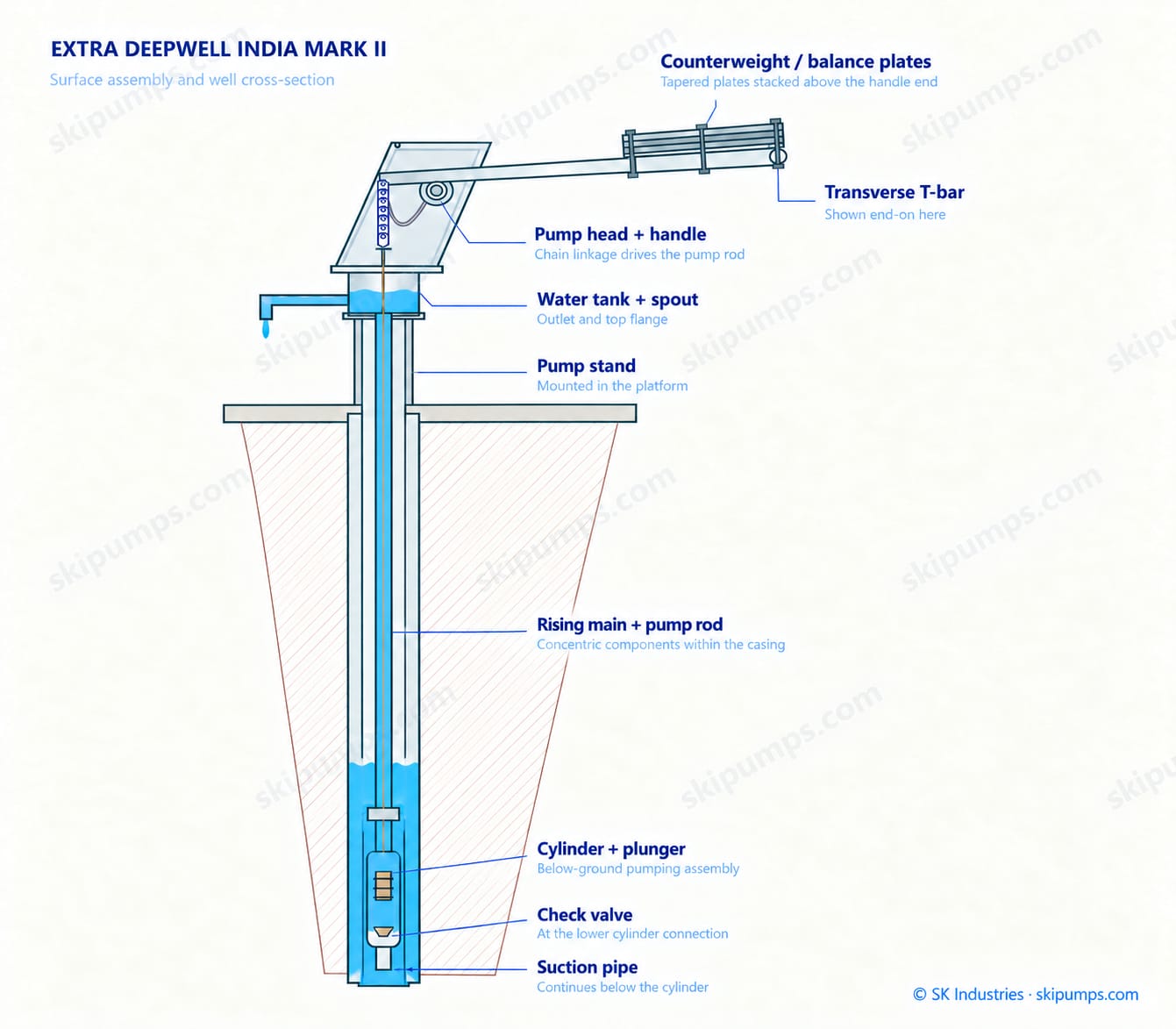

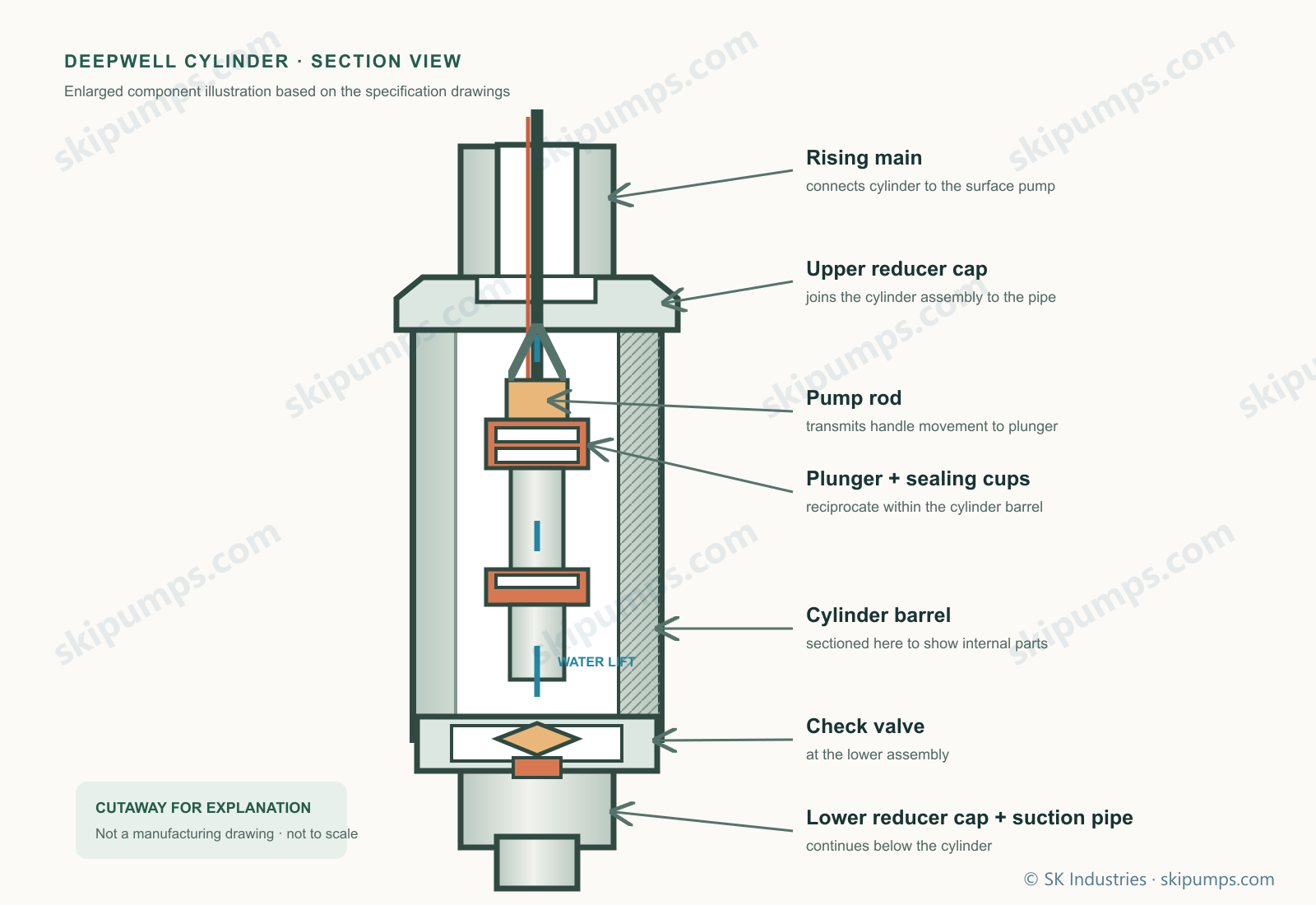

The surface handle drives a pump rod inside the rising main. At the bottom of the borewell, the cylinder’s plunger lifts water through the rising main to the spout, while the check valve helps prevent the water column from flowing back down.
These illustrations explain the main parts and are not to scale. Confirm the borewell size and required cylinder placement for the site before ordering.
Cast iron or stainless steel cylinder

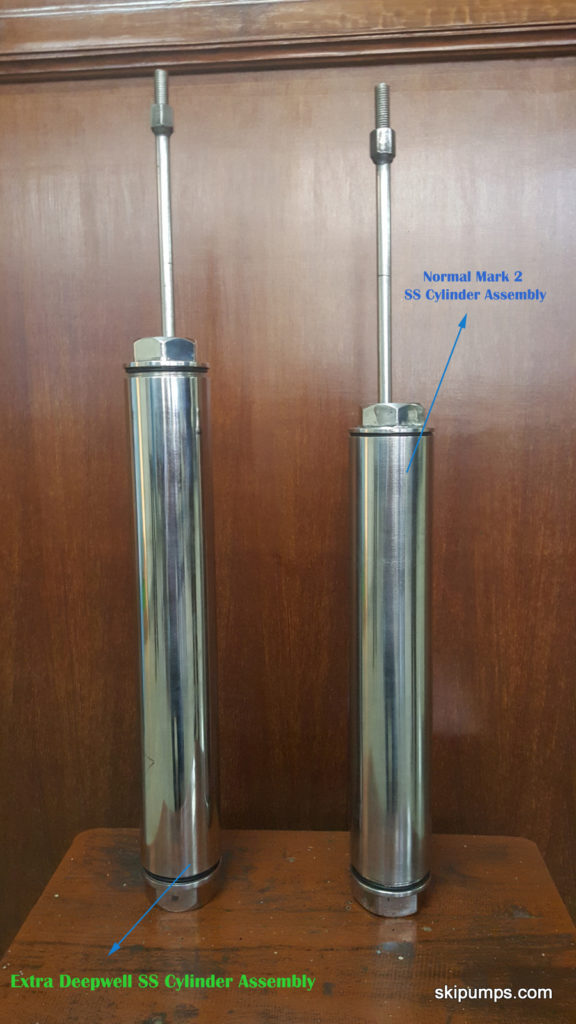

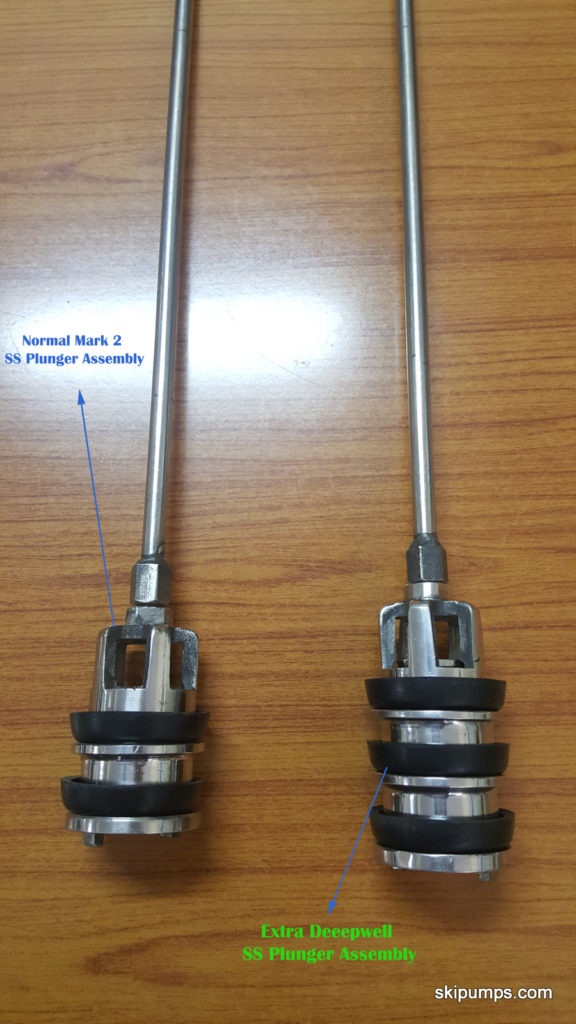

Normally, a cast iron cylinder assembly with gun-metal components is used for the Extra Deepwell hand pump. Where the water is corrosive, an SS 304 cylinder assembly is also available, as shown in the pictures below. See our stainless steel components page for the SS 304 cylinder, connecting rods and riser pipes.
Check your borewell before you order
The inner diameter of the borewell where these pumps are installed should not be less than 100 mm. Tell us your static water level and borewell size when you enquire, and we will confirm whether the Extra Deepwell suits your site.
Why buy an Extra Deepwell hand pump from SKI
- Hand pump manufacturer since 1961, exporting to 50+ countries
- ISO 9001:2015 quality system for the manufacture and supply of hand pumps
- Our own hot-dip galvanizing plant, galvanizing to IS 4759
Ask for a quote
Send a one-click enquiry with the form below, call +91 9709701127, or email sales@skipumps.com.
Extra Deepwell hand pump FAQ
- How deep can an Extra Deepwell hand pump draw water? It suits static water levels of 50 to 90 metres, with the cylinder placed up to 85 metres deep.
- What borewell size does it need? The inner diameter must be at least 100 mm.
- Is it different from the India Mark 2? Most components are the same, but the head is slightly different, the handle is thicker, and the cylinder assembly is different.
- Is a stainless steel cylinder available? Yes, an SS 304 cylinder assembly is available in place of the standard cast iron cylinder.
