Shree S.K. Industries supplies Afridev spare parts and tools from India, made to the RWSN / SKAT Afridev Specification (Rev 5-2007). Send us the part names with the quantities you need, and we will send you a quote.
Request an Afridev Spare Parts Quote
Afridev spare parts for Mozambique
The Afridev is the standard hand pump adopted by the Government of Mozambique, and a 2021–22 UNICEF-published sustainability check found it on about 93% of the rural water points surveyed. The same study found that nearly three in four pumps had broken down at least once in the previous year, and over 40% had breakdowns lasting a week or more. Only about one in three water committees kept spare parts in stock.
Most of these stoppages come from a few wear parts: cup seals, bobbins, O-rings and bush bearings. A pump can often be repaired with a small kit of these parts, a fishing tool and spanners, without replacing the whole pump. We supply Afridev spare parts for Mozambique, packed for export. Send us the part names and quantities and we will send you a quote.
Which Afridev spare parts wear out first?
Most repairs on an Afridev hand pump involve a small set of parts. The rubber and plastic parts inside the cylinder wear first: the cup seal and bobbins on the plunger and footvalve, and the O-ring in the plastic footvalve. At the pump head, the plastic bush bearings at the fulcrum and rod hanger wear with use. The pump needs four bearing sets. Rubber centralisers on the pumprods and the riser pipes also wear over time.
Since Rev 5 of the specification, the Afridev uses a brass plunger with a cup seal. Plastic plungers with cup seals are no longer part of the specification.
Afridev spare parts list
The table below lists the Afridev spare parts and tools we supply, and where each one is used.
| Part | Where it is used |
|---|---|

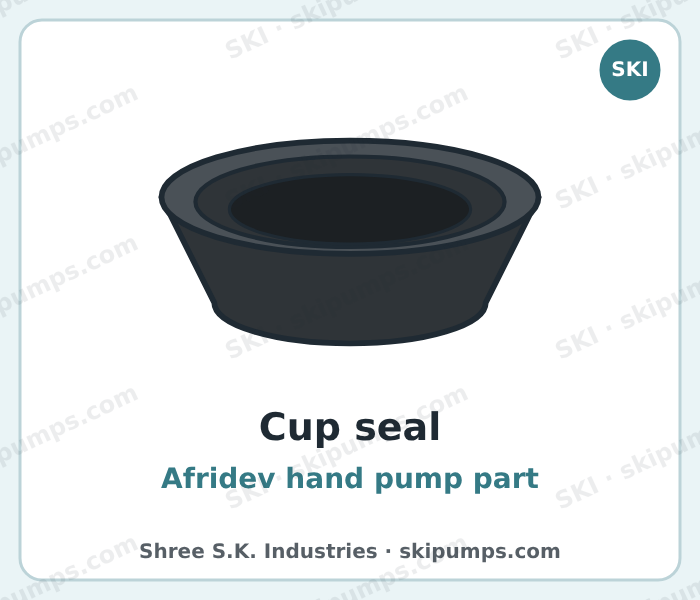

| Cup seal | Seals the plunger inside the cylinder |

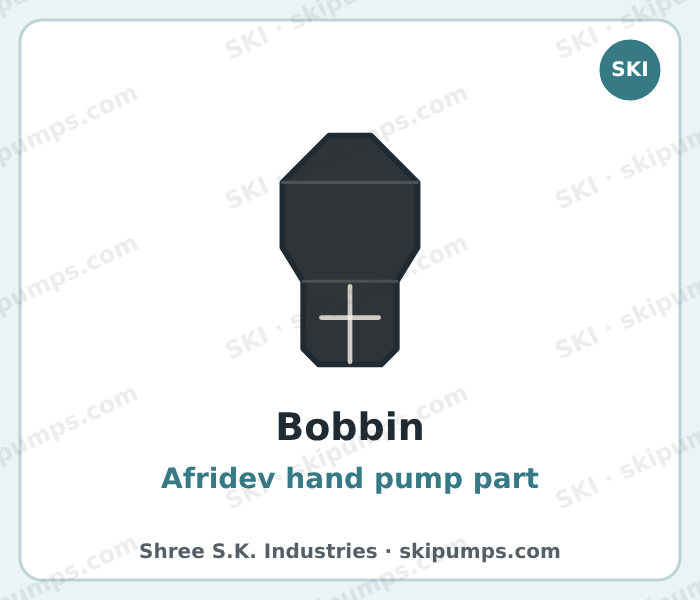

| Bobbin | Valve seal in the plunger and the footvalve |

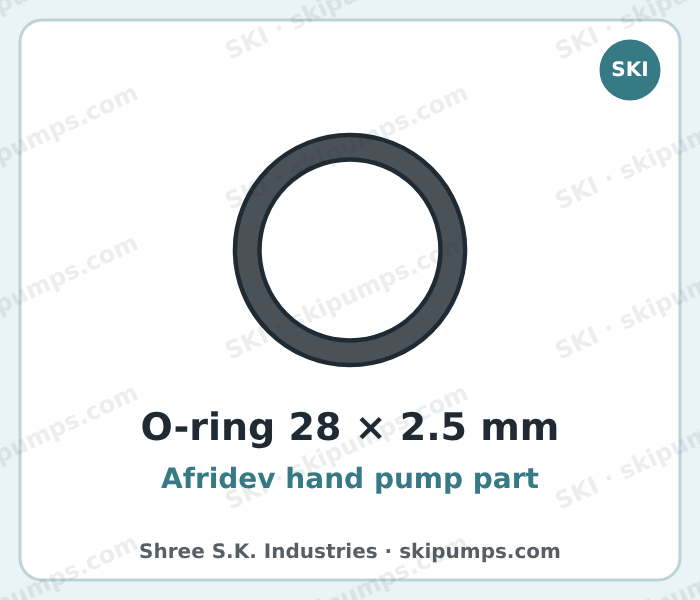

| O-ring 28 × 2.5 mm | Plastic footvalve |

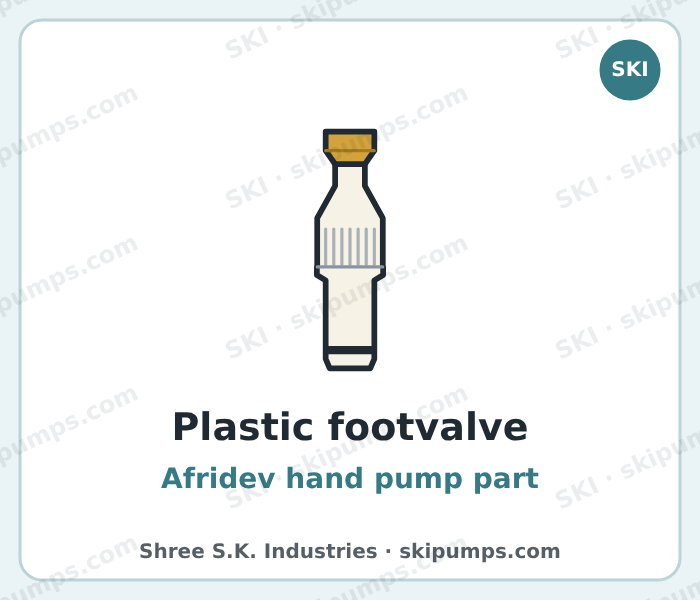

| Plastic footvalve body | Footvalve at the bottom of the cylinder |

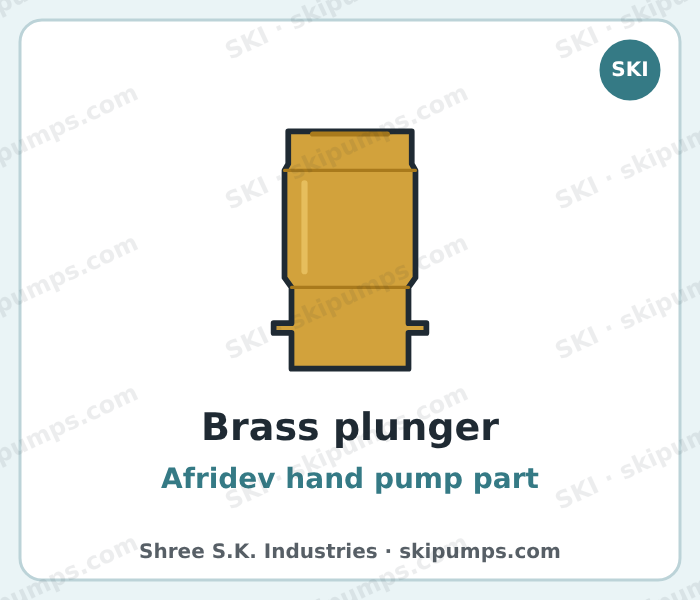

| Brass plunger body | Plunger |

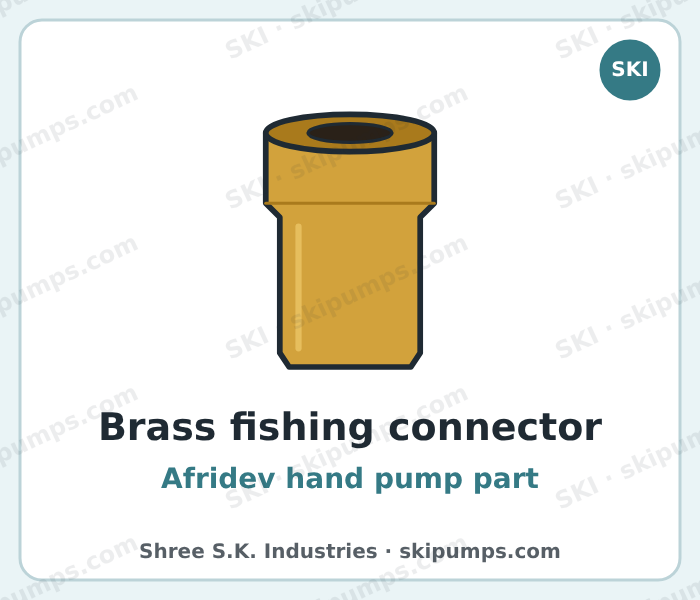

| Brass fishing connector | Footvalve, for lifting it out with the fishing tool |

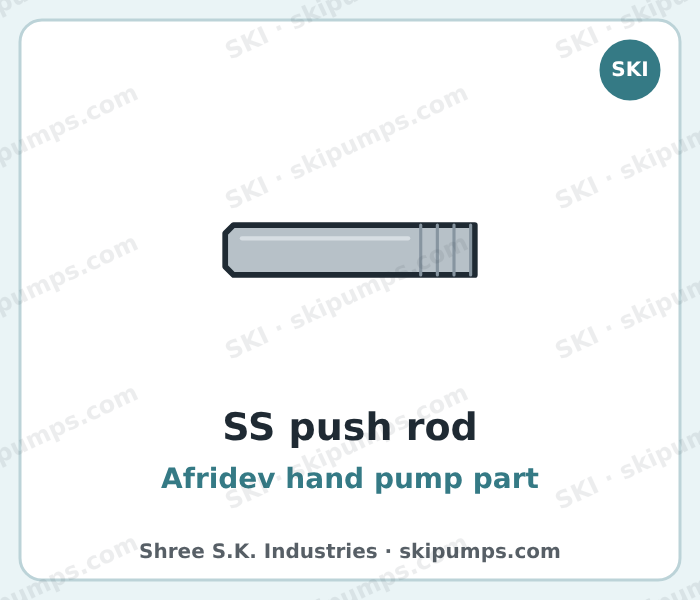

| Stainless steel push rod | Footvalve with fishing connector |

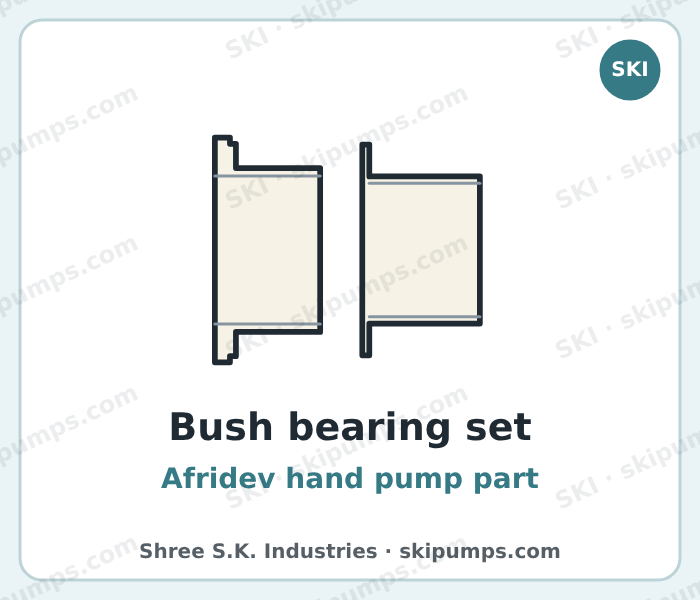

| Bush bearing set (outer and inner) | Fulcrum and rod hanger in the pump head |

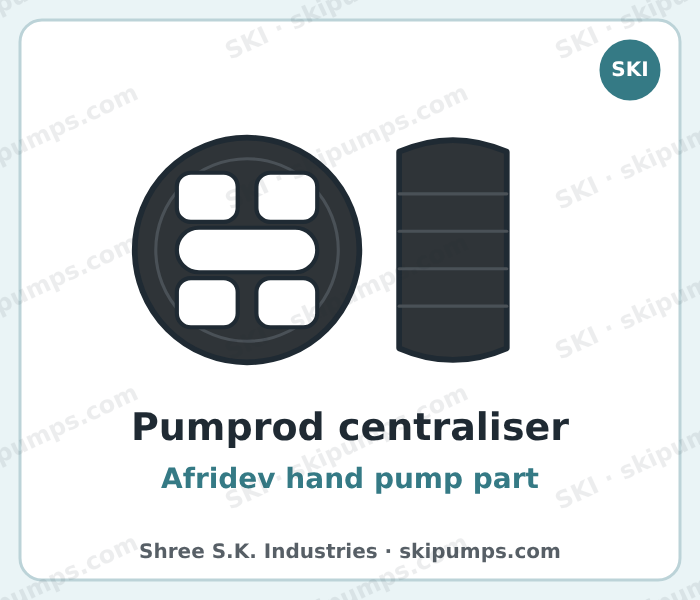

| Pumprod centraliser (hook and eye rods) | One at each rod joint |
| Pumprod centraliser (threaded rods) | One at each rod joint |

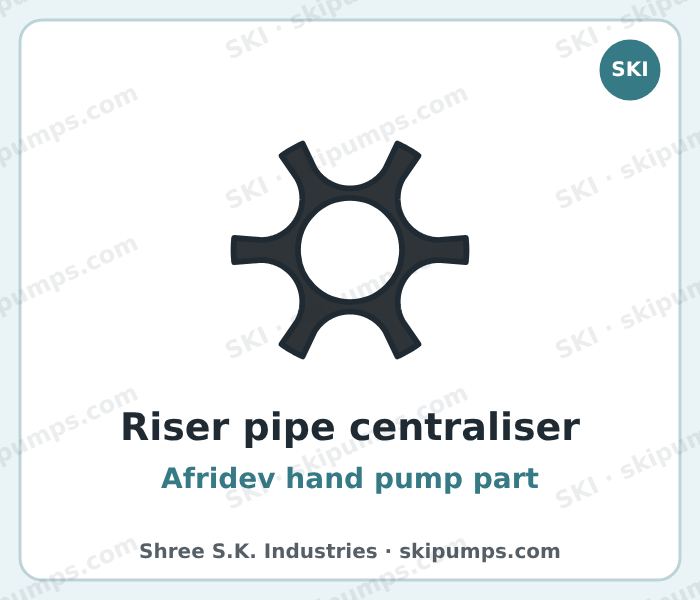

| Riser pipe centraliser, 4 / 4.5 / 5 / 6 inch casing | Rising main, sized to the borehole casing |

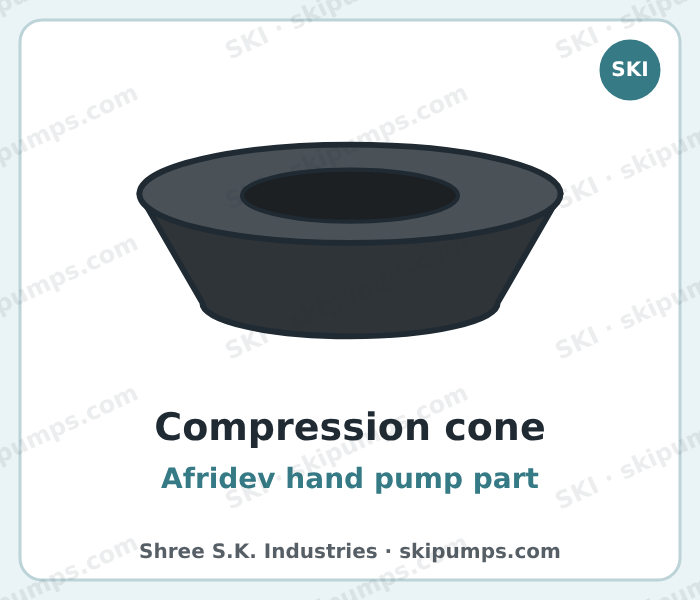

| Compression cone (rubber) | Seals the top of the rising main in the stand |

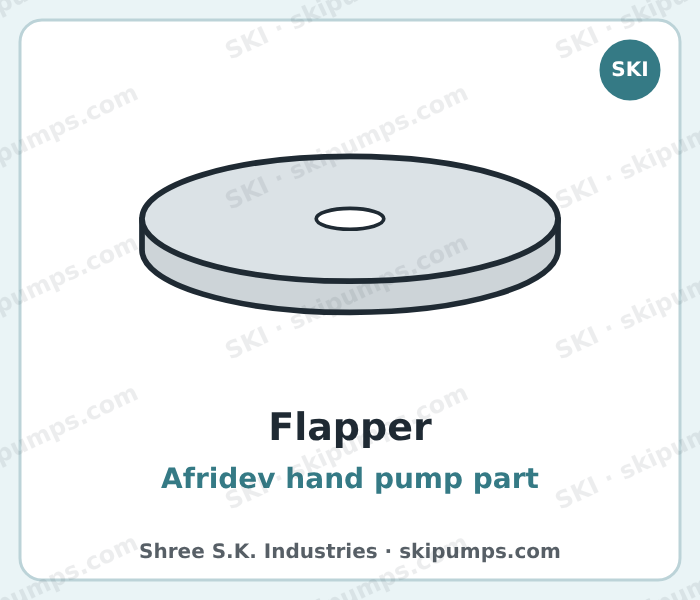

| Flapper | Top of the rising main |

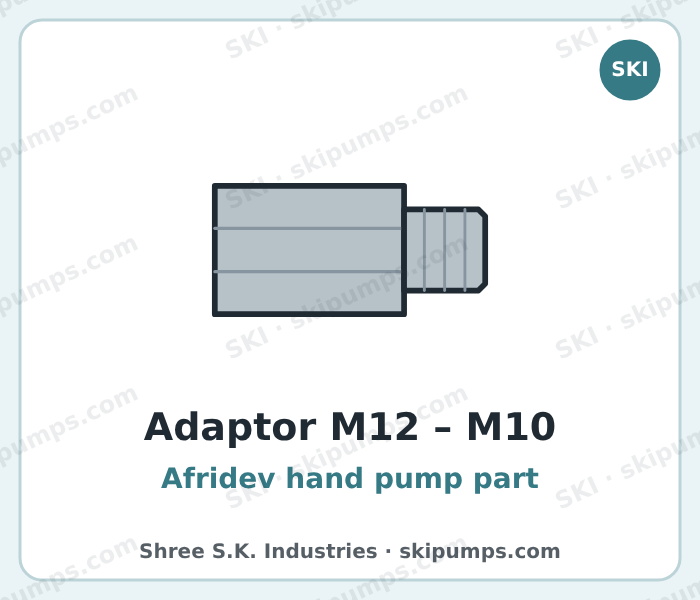

| Adaptor M12 – M10 (stainless steel) | Plunger rod for hook and eye pumprods |

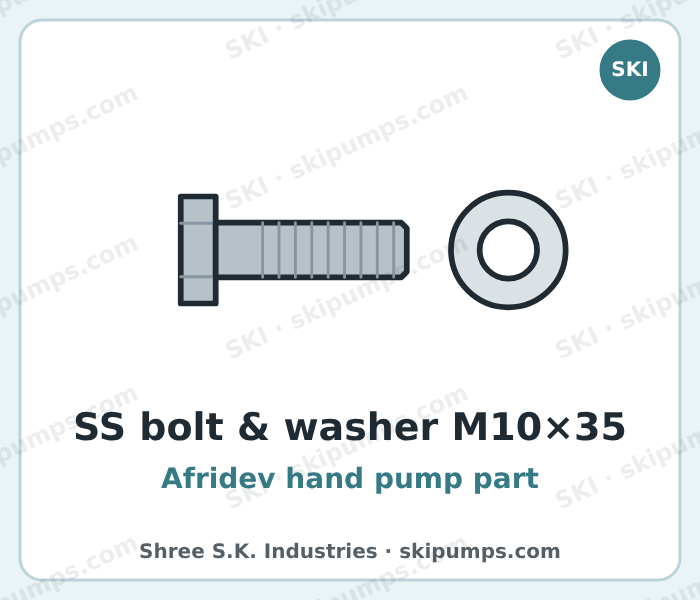

| Stainless steel bolt M10 × 35 and washer | Footvalve |

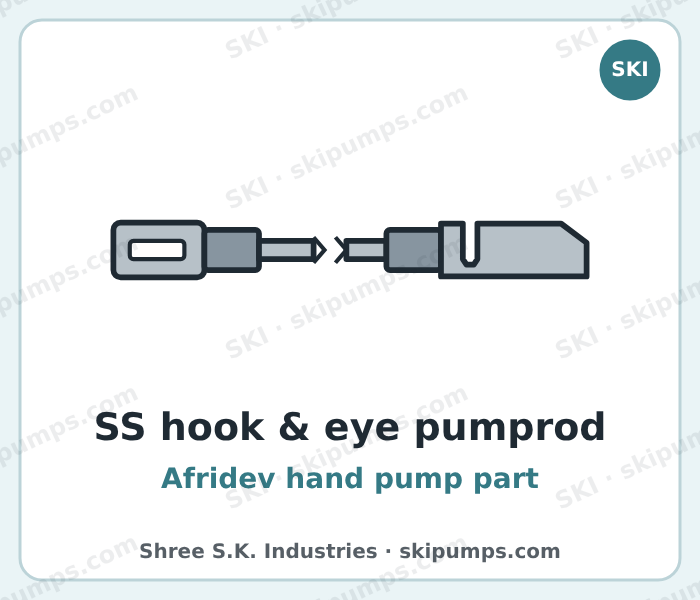

| Stainless steel hook and eye pumprod | Pumprods for installations up to 30 m |

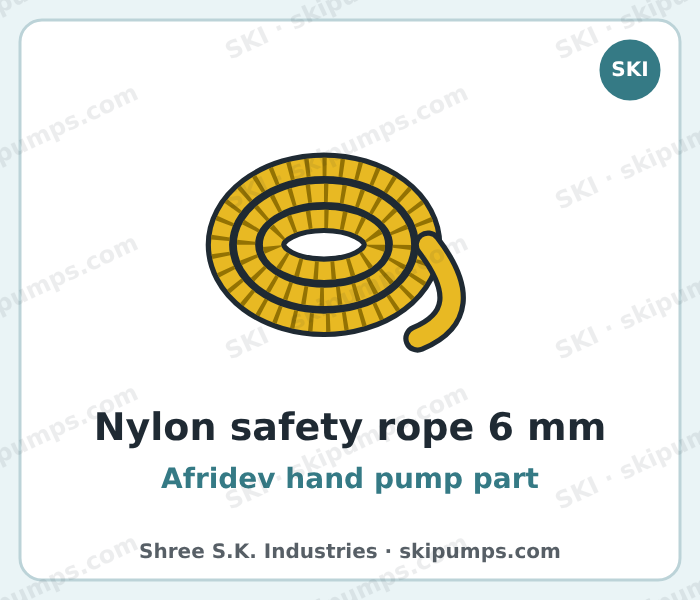

| Nylon safety rope, 6 mm | Rising main |

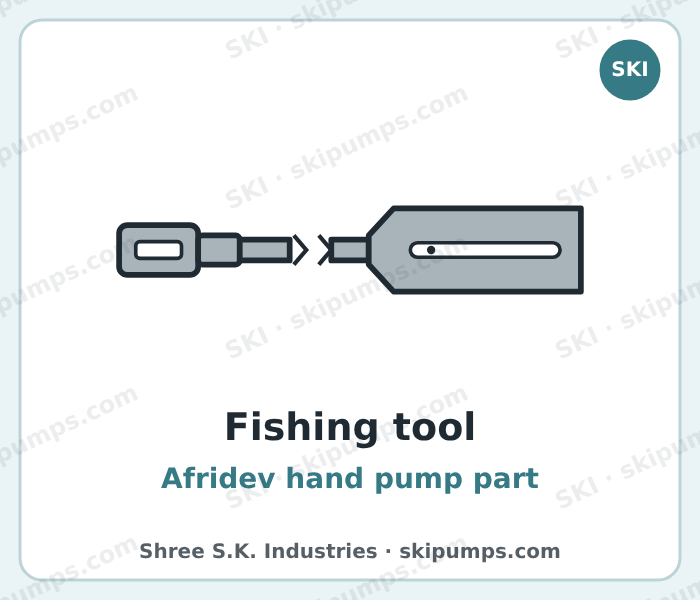

| Fishing tool (hook and eye or threaded) | Lifting the footvalve |

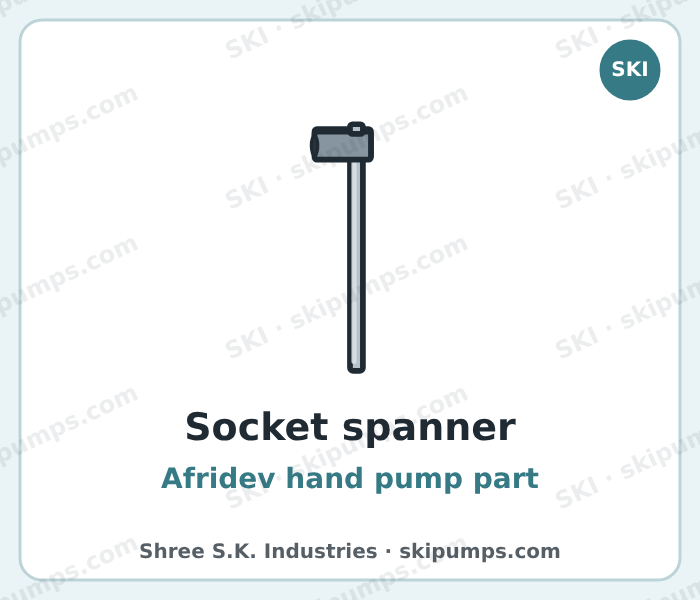

| Socket spanner | Installation and maintenance |

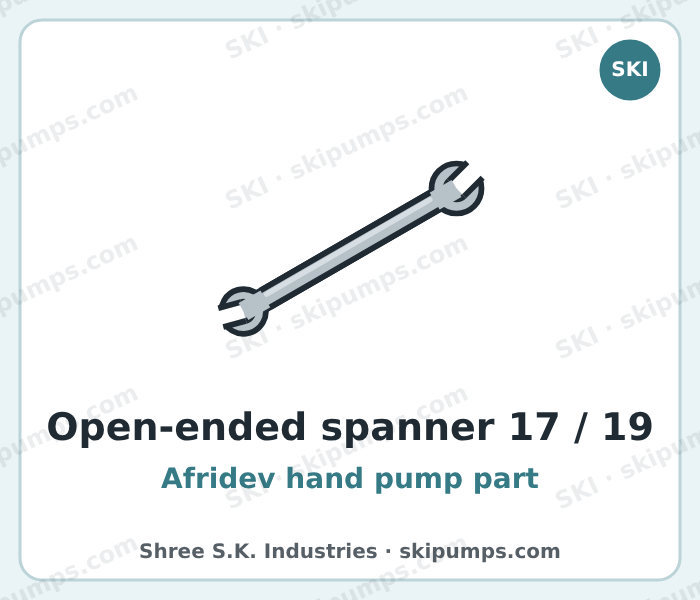

| Double open-ended spanner 17 / 19 A/F | Installation and maintenance |

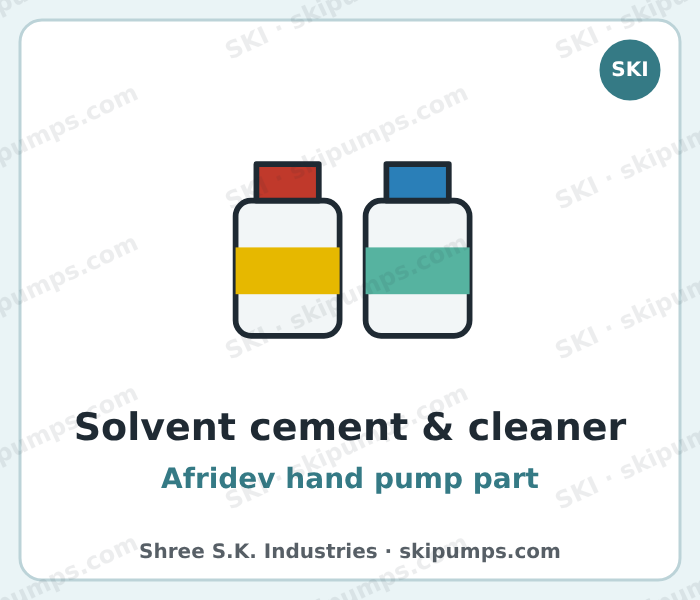

| Solvent cement and cleaning fluid | Cylinder and rising main joints (PVC pipe) |
Hook and eye pumprods are suitable for installations up to 30 m. For deeper installations we supply threaded stainless steel pumprods.

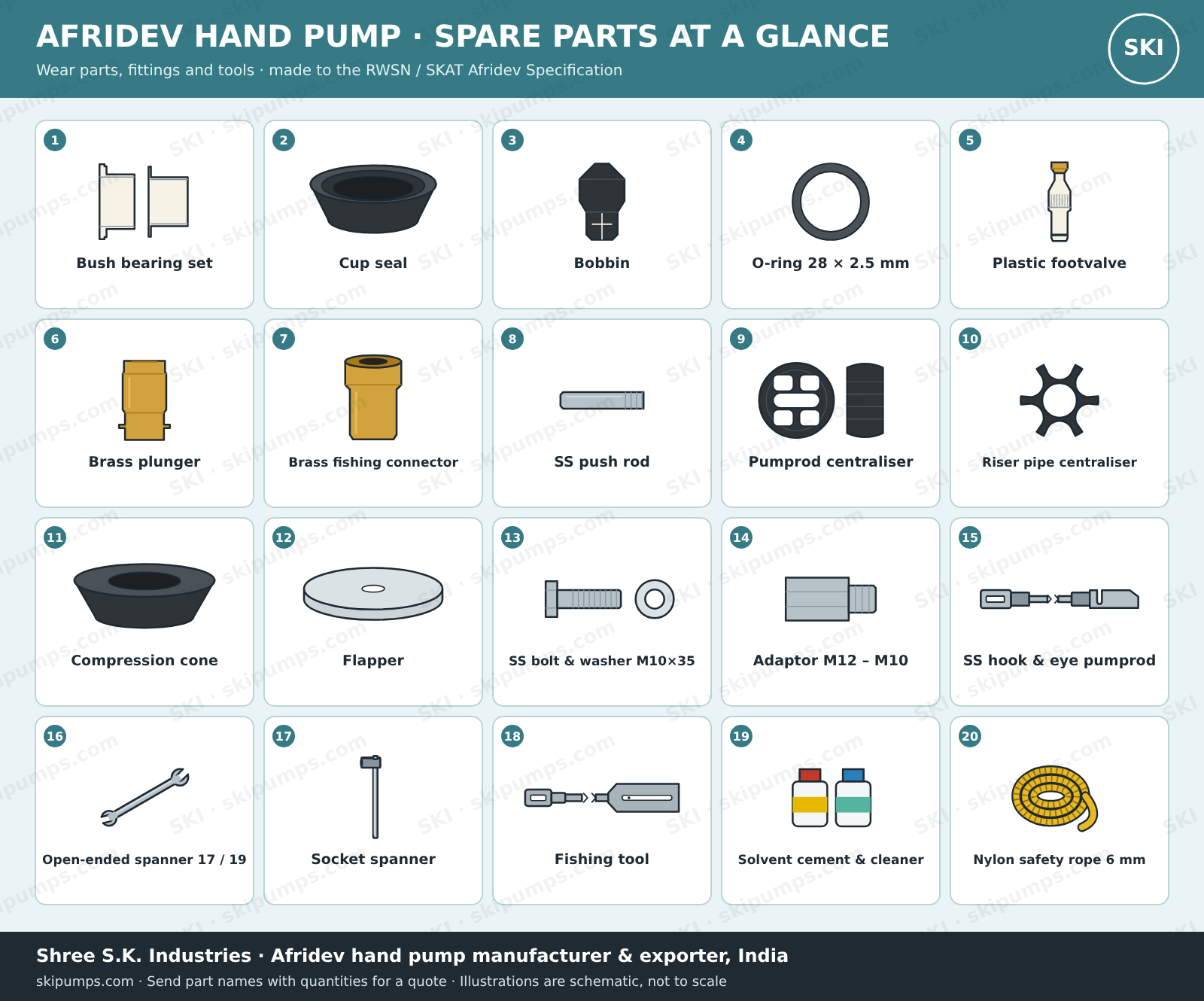

Afridev spare parts pictures
How to order Afridev hand pump parts
Send us the part names from the list above (or from the parts diagram on our Afridev hand pump page), with the quantity of each, the size of your borehole casing if you need riser centralisers, and your destination. We will send you a quote. We pack the parts for export, so they reach the end users undamaged: see how we pack hand pumps.
If you also use India Mark 2 pumps, see our India Mark 2 hand pump page, or browse the Knowledge Base for buyer questions.
Afridev spare parts questions
How many bush bearings does an Afridev pump need?
Each pump uses four bearing sets, each made of an outer bush and an inner bush. We supply them as a set.
Are Afridev parts interchangeable?
The Afridev specification requires 100% interchangeability of components and sub-assemblies, so parts made to the specification are designed to fit any Afridev pump. If you are unsure, send us the part or its dimensions and we will confirm.
Which spare parts should I keep in stock?
Cup seals, bobbins, O-rings and bush bearing sets are the parts that wear most. A spare set of these, plus a fishing tool and spanners, covers most repairs.
Do you also supply complete Afridev pumps?
Yes. See our Afridev hand pump page for complete pumps.
